Enhancing Workplace Safety: The Importance of Arc Flash Signage in the Energy Industry

Within the power, gas, and renewables industry, maintaining a safe working environment is critical.

Engineers, electricians, and other qualified professionals face a hazardous risk known as arc flash. It is vital for these individuals to understand what arc flash is, its impact on people, and the critical role that signage plays in mitigating risks and ensuring workplace safety.



What is Arc Flash?

Arc flash refers to a sudden release of energy caused by an electric arc within an electrical system. This phenomenon occurs due to a fault or short circuit, resulting in an unintended discharge of electrical energy.

Arc flashes can lead to extreme temperatures, intense light, pressure waves, and the release of toxic gases.

The severity of an arc flash event depends on various factors, including fault current, arc duration, and the proximity of individuals to the event.

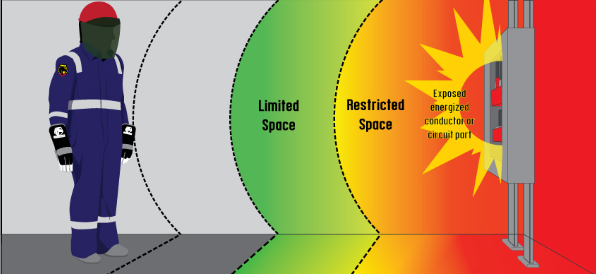

Screenshot 07-18-2023 13.22.11



Effects of Arc Flash on People

Arc flash incidents can have devastating consequences on people and the surrounding environment. Immediate effects of an arc flash include severe burns, vision impairment or blindness, hearing damage, and other traumatic injuries. The extreme temperatures and pressure waves generated during an arc flash can cause flying debris, posing additional harm to workers in the vicinity.



Temperatures during an arc flash event can exceed 19,400 degrees Celsius. To put it into perspective, this is more than three times the temperature of the surface of the sun.



Furthermore, the heat released during an arc flash can ignite nearby flammable materials, leading to secondary explosions and fires. The release of toxic gases and vaporised metal particles presents a serious health risk and can result in respiratory issues or chemical burns. Witnessing or experiencing an arc flash event can also have a significant psychological impact, potentially causing long-term trauma and emotional distress.



Screenshot 07-18-2023 13.21.26



Importance of Signage in Arc Flash Safety

In the face of such potential hazards, implementing effective signage plays a critical role in ensuring the safety of people working with electrical systems.

Here are the key reasons:

  1. Awareness and Identification: Clearly visible signage can help identify areas where arc flash hazards may exist. Warning signs placed near electrical equipment or panels can alert individuals to potential risks, prompting them to take necessary precautions and use appropriate personal protective equipment (PPE).

  2. Risk Communication: Signage provides essential information about the level of danger associated with specific equipment or areas. It conveys important details, such as voltage levels, required PPE, and safe work practices to be followed, enabling workers to make informed decisions and minimize risks.

  3. Prevention and Precautions: Signage serves as a reminder to workers about critical safety procedures, such as de-energizing equipment before maintenance or ensuring proper grounding. By reinforcing safe work practices, signage helps reduce the likelihood of arc flash incidents and promotes a safety-first mindset among professionals.

  4. Emergency Response: In the event of an arc flash, well-placed signage can guide emergency responders to the affected area swiftly. Clear evacuation routes, emergency contact information, and assembly points can be indicated through signage, facilitating a prompt and coordinated response to mitigate the impact of the incident.

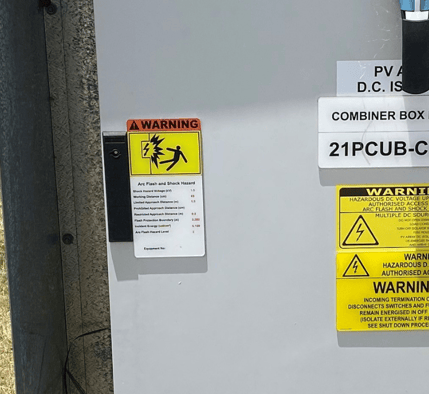

Arc Flash Signage



The top label used is known as an equipment label, available in various sizes.

For combiner boxes, it should be large enough to be easily seen from a vehicle on the access road. This label identifies the specific box and signifies its purpose as the isolation point for the PV array.

Below that is the Arc flash label, displaying the arc flash rating and required 'Cal' rating for personal protective equipment (PPE) when accessing the cabinet. It may also indicate any necessary permits.

The bottom U3 sign serves as a warning sign, alerting individuals to the presence of DC voltage.





Arc flash incidents pose a significant risk to engineers, electricians, and other qualified professionals working in the power, gas, and renewables industry. Understanding the nature of arc flash and its potential consequences is crucial for maintaining a safe working environment. By implementing effective signage, companies can enhance awareness, communicate risks, and promote proper safety procedures to minimize the likelihood and severity of arc flash incidents.

At Identimark, we are passionate the critical role of signage in ensuring workplace safety. Through our innovative, long-term, and cost-effective solutions for warning and danger signage, identification, labelling, and on-site safety supplies, we strive to empower professionals with the tools they need to protect themselves and their colleagues from the hazards of arc flash. Together, we can create a safer working environment in the power, gas and renewables industry.



About Identimark

Identimark supplies the power, gas and renewables industry with the world's most innovative, long-term and cost-effective solutions for signage, identification, labelling and on-site safety supplies. Our products are designed to meet the needs of large scale infrastructure projects in the energy sector.
