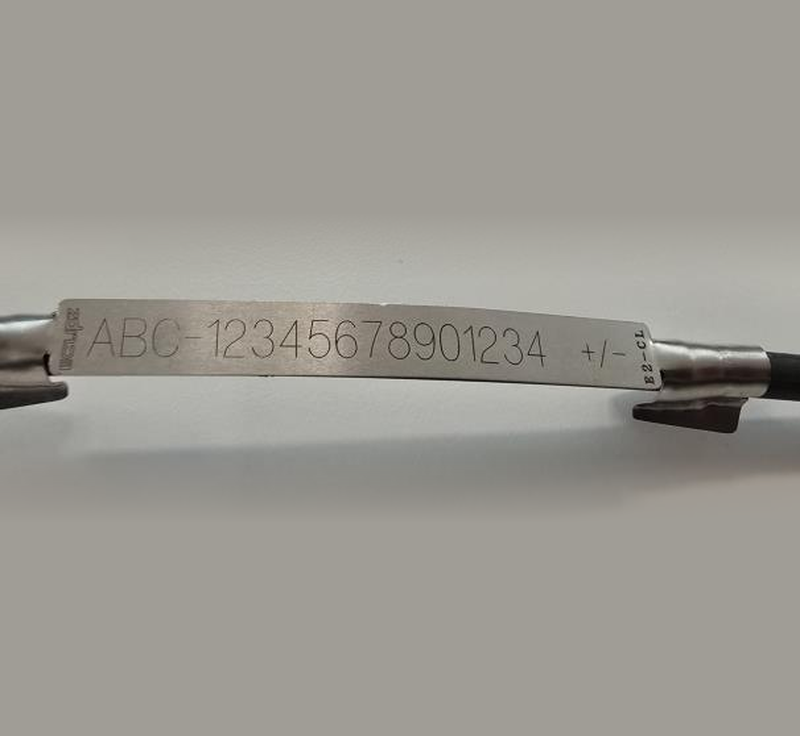

ECLIPZ E2-CL stainless steel cable label clipped onto a cable, laser engraved with an asset number
E2-CL key features: two second install, no tools, fits 5 to 10 mm cable, laser engraved text

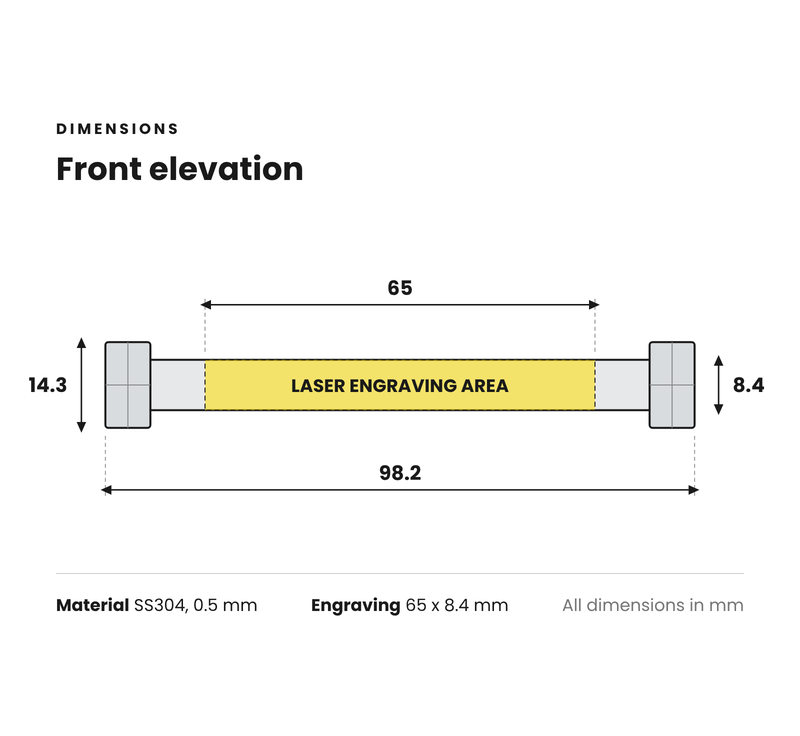

E2-CL dimension drawing: 98.2 mm overall length, 65 x 8.4 mm laser engraving area

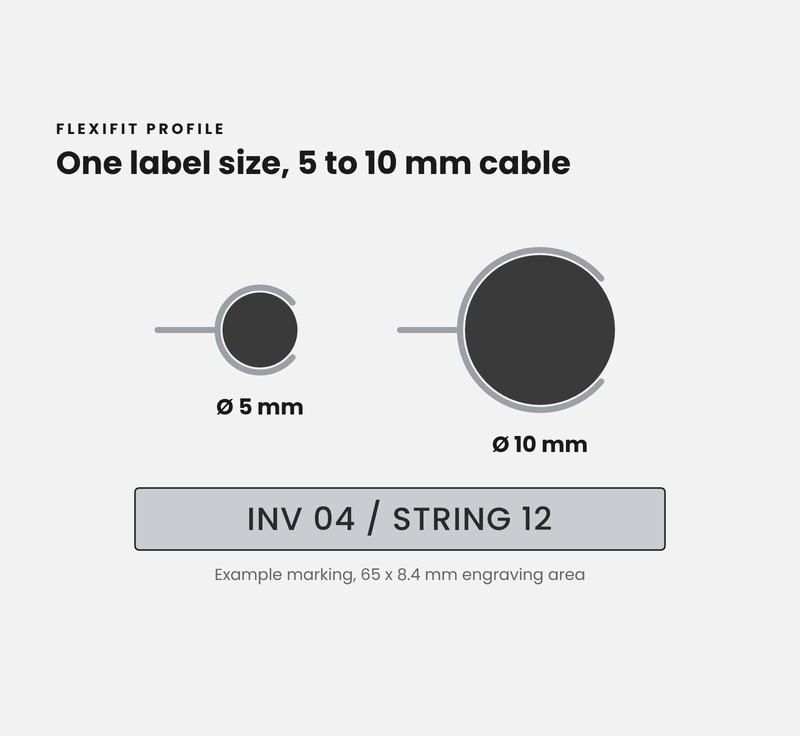

E2-CL Flexifit clip shown on 5 mm and 10 mm cables, with example marking INV 04 / STRING 12
Eclipz

E2-CL Stainless Steel Cable Label.

The E2-CL is a one-piece stainless steel cable label built for marking DC harness cables on solar farms. It fits by hand in around two seconds, with no tools and no consumables. Text is laser engraved, so the marking lasts as long as the label itself. One Flexifit profile covers cables from 5mm to 9mm outside diameter, so you carry one label size across the whole run, not several.

Enquire about this product
Icons-3

Benefits

Two second install

Clip it onto the cable by hand. No tools, no ties, no adhesive.

Nothing to lose on site

One-piece design means no loose parts to drop in the field.

Marking that lasts

Laser engraved text can't fade, peel or wash off.

Built for coastal sites

Marine grade stainless steel stands up to salt air and weather.

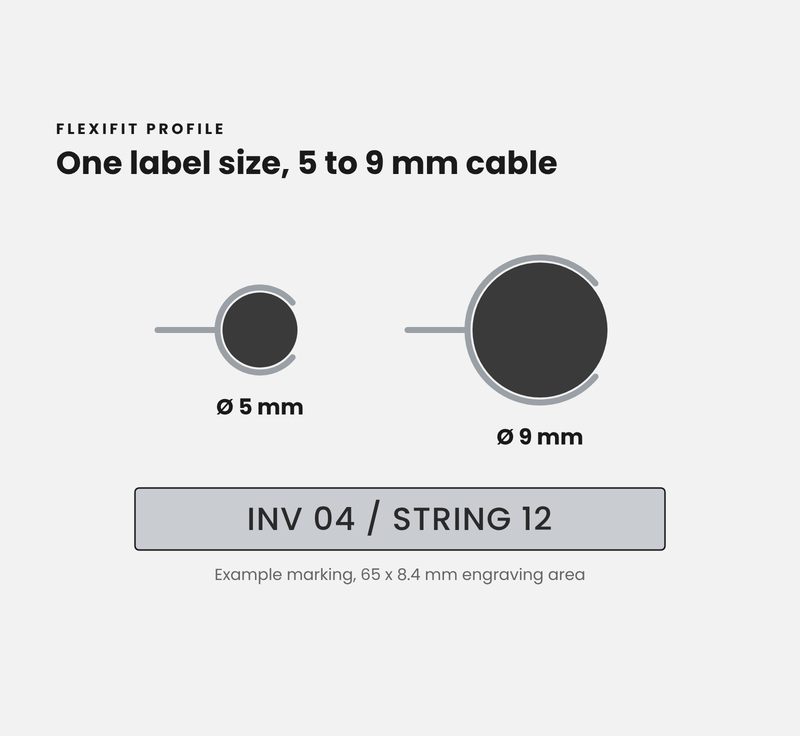

One size, more cables

Flexifit profile suits cables from 5mm to  9mm OD.

Your numbering, your format

Engraved to match your asset or string numbering scheme.

Vector

Options & Features

Vector (1)

Specifications

Two second install

Clip it onto the cable by hand. No tools, no ties, no adhesive.

Nothing to lose on site

One-piece design means no loose parts to drop in the field.

Marking that lasts

Laser engraved text can't fade, peel or wash off.

Built for coastal sites

Marine grade stainless steel stands up to salt air and weather.

One size, more cables

Flexifit profile suits cables from 5mm to  9mm OD.

Your numbering, your format

Engraved to match your asset or string numbering scheme.

FAQs.

How long does the E2-CL take to install?

Around two seconds. It clips onto the cable by hand. No tools needed.

What cable sizes does it fit?

Cables from 5mm to 9mm outside diameter. The Flexifit profile means one label size covers that full range.

Do I need cable ties or adhesive?

No. The E2-CL is a single piece that clips straight onto the cable. There are no consumables.

Will the marking fade over time?

No. Text is laser engraved into the stainless steel, not printed, so it can't fade, peel or wear off. It lasts as long as the label.

What can be engraved on it?

Any text that fits the 65 x 8.4 mm engraving area, such as inverter and string references (for example INV 04 / STRING 12). We engrave to match your asset numbering.

Is it suitable for coastal or harsh sites?

Yes. It's made from marine grade SS304 stainless steel for sites exposed to salt air and weather.

Where is it used?

Mainly on DC harness cables on solar farms, and on cable identification at BESS sites.

How do I order?

Send us your cable sizes, quantities and numbering scheme and we'll come back with a quote. Use the enquiry form or call AU 1800 980 182 / NZ 0800 700 300.
