Solar cable clips.

Eclipz stainless steel clips for PV projects across Australia. Hold two, four or six cables, with straight and 90° routing options.

Request a quote

Set cable positions on the module frame.

Eclipz clips hold PV cables in set positions, with smooth, rounded stainless steel edges and no tie tails to trim. Choose the model for your cable count and routing direction.

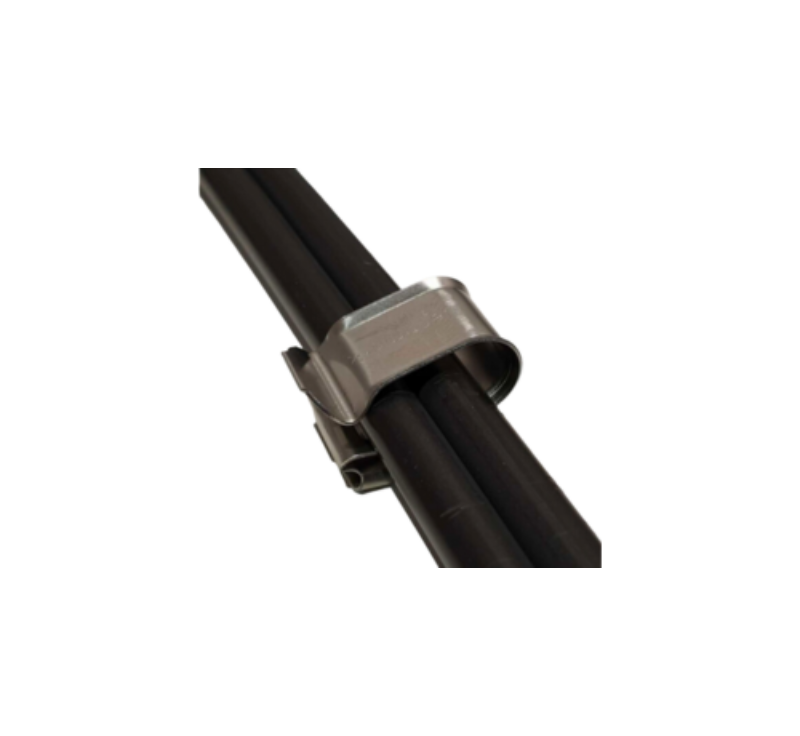

Eclipz E2-90/180CC stainless steel clip holding two solar cables

Choose your cable clip.

Match the cable count and routing direction to your module layout. Compare the models below.

Model Cables held Routing
E2-CC 2 Straight
E2-90/180CC 2 90°
E4-CC 4 Straight
E4-90CC 4 90°
E6-90CC 6 90°

Get the right fit.

Send the details below so we can confirm the model and fit before you order.

  • Cable outside diameter, not conductor size
  • Cable count and routing direction
  • Module frame profile and thickness
  • Quantity and installation timeline
  • Site conditions, including coastal exposure

Check the model specification.

The E2-90/180CC holds up to two cables, each up to 7mm outside diameter. Its listed material is SUS304 H stainless steel, 0.5mm thick.

Clip material thickness is different from module frame thickness. Send your frame profile and cable dimensions so we can confirm compatibility with the selected model.

For coastal or high-UV sites, include the installation environment and any project specification with your enquiry.

Who we work with.

Sterling Wilson
PCL
All Energy
Metka
GRS
Meridian
Featured projects

Culcairn Solar Farm.

New South Wales, Australia

For Neoen and EPC Bouygues, Identimark developed the Eclipz cable hanger and a custom motor bridge for Nextracker trackers. Crews installed 82,000 hangers in four days, against an expected three to four weeks.

Read more
Eclipz cable hangers on Nextracker trackers at Culcairn Solar Farm
Columboola Solar Farm

Clips, hangers and labels from one range.

Clips secure cables on module frames. The wider Eclipz range also includes cable hangers and identification products for other parts of the installation.

Explore the Eclipz cable management range

FAQs.

Will Eclipz clips fit my solar modules?

Send your module datasheet or frame profile, frame thickness and cable outside diameter. We will confirm compatibility with the selected clip before you order.

What size cable do the clips hold?

The E2-90/180CC is listed for up to two cables, each up to 7mm outside diameter. E2, E4 and E6 identify capacities of two, four and six cables. Confirm the diameter range and frame fit for the model you select.

How are the clips installed?

Follow the installation guidance for the selected model and module frame. Include your frame profile with the enquiry so we can confirm the fitting method and any tool requirements.

Can the clips be reused?

Confirm the removal and refitting guidance for your clip model before reuse. Tell us if the installation will need to be moved or reconfigured.

Can you supply clips for a utility-scale solar farm?

Yes. We quote by project quantity and can plan deliveries around your installation programme. Send the module count, cable layout and timeline.
